Autel Robotics EVO Max 4T

by Autel
Sold out
$8,999.00

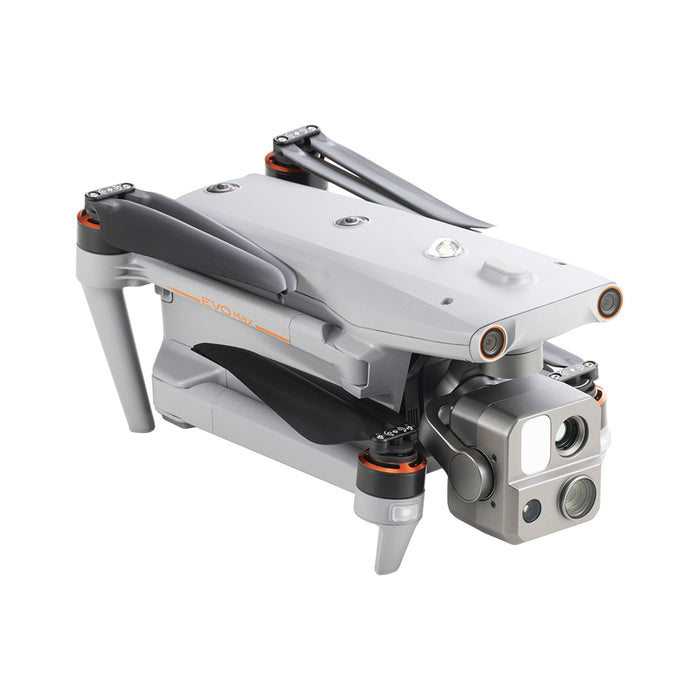

  • The EVO Max 4T brings powerful technologies and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance. Advanced sensors make flight in GPS-unavailable areas possible, and the incredible new thermal payload unlocks new object identification and tracking scenarios. With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.

    Call for pre-order information at 1 800 347 9297 or email info@tracerdrone.com

    MFG Part Number: Autel Robotics EVO Max 4T

    Model Number: Autel Robotics EVO Max 4T

    Whats In the Box?

    1 x Aircraft
    1 x Battery
    1 x Gimbal Cover
    1 x 64GB MicroSD Card
    1 x Battery Charger & Power Cable
    3 x Clockwise Propellers
    3 x Counter-Clockwise Propellers
    1 x Screwdriver
    1 x Smart Controller V3
    1 x Smart Controller Lanyard
    1 x Smart Controller Cover
    1 x Pair of Joysticks
    1 x RC Charger
    1 x RC Charging Cable
    1 x Data Cable
    1 x Manual
    1 x Quick Start Guide
    1 x Packing List
    1 x Rugged Case

    1. No Geofencing
    2. 8K 10x Optical Zoom
    3. Thermal Camera:640x512 | 16x Digital Zoom
    4. Wide Camera: 50MP | 1/1.28" CMOS
    5. Zoom Camera: 48MP | 8K 10x Optical Zoom (160x Max)
    6. Laser Rangefinder
    7. Autel SkyLink 3.0 | 12.4 miles Transmission Range
    8. 720° Obstacle Avoidance
    9. 42 mins Max Flight Time
    10. A-Mesh 1.0 | Mesh Networking Technology
    11. 3D Map Planning | Multiple Mission Types | Data Security
    12. Multi-channel Projection Screen*
    13. Autel SDK
    14. IP 43 Weather Rating
  • Aircraft

    Weight 3.5 lbs (1600g, battery and gimbal included)
    Dimensions 576*660*149 (folded, incl. propellers) 340*407*148(folded, excl. propellers) 257*136*133 (unfolded, excl. propellers)
    Diagonal Wheelbase 1.52 ft (464mm)
    Max Ascent Speed 8m/s
    Max Descent Speed 6m/s
    Max Horizontal Speed (windless near sea level) 22m/s
    Max Service Ceiling Above Sea Level 23000ft (7000m)
    Max Flight Time (windless) 42 mins
    Max Hovering Time (windless) 40 mins
    Max Wind Resistance 27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
    IP Rating IP43
    Max Tilt Angle 35°
    Max Angular Velocity Pitch: 300°/s; Yaw: 120°/s
    Operating Temperature -4°F to 122°F (-20℃ - 50℃)
    Operating Frequency 2.4G/5.2G*/5.8G/900MHz*
    Transmitter Power (EIRP) 2.4GHz:<33dBm(FCC), 20dBm(CE/SRRC/MIC) 5.8GHz:33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC)
    Hovering Accuracy Vertical: ±0.1 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.15 m (Vision System enabled); ±0.3 m (GPS enabled);

    Gimbal

    Mechanical Range Pan: -135° to 45° Tilt: -45° to 45° Roll: -100° to 100°
    Controllable Range -90° to 45°
    Stable system 3-axis mechanical gimbal (pitch, tilt, roll)
    Max Control Speed (pitch) 200º/s
    Angular Vibration Range <0.005°

    Zoom Camera (Telephoto)

    Sensor 1/2" CMOS, Effective pixels: 48M
    Lens Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8
    Exposure Compensation ±3EV 0.3EV/step
    ISO Range Normal Mode: Auto: ISO100 ~ ISO6400 Manual: Photo: ISO100 ~ ISO12800 Video: ISO100 ~ ISO6400
    Shutter Speed Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
    Max Photo Size 8000×6000
    Max Video Resolution 7680×4320

    Wide Camera

    Sensor 1/1.28 CMOS, Effective pixels: 50M
    Lens DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus
    Exposure Compensation ±3EV 0.3EV/step
    ISO Range Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400
    Shutter Speed Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
    Max. Video Resolution 3840×2160
    Photo Size 8192*6144 4096*3072

    Thermal Camera

    Thermal Imager Uncooled VOx Microbolometer
    Lens DFOV: 64°
    Aperture: 13mm
    Focus: f/1.2
    Infrared Temperature Measurement
    Accuracy
    26.6~37.4 ℉ or reading ±3% (using
    the larger value) @ambient
    temperature -4℉ to 140℉
    Video Resolution 640*512
    Photo Size 640*512
    Pixel Pitch 12 um
    Temperature Measurement Method Center measurement, pot measurement, rectangular measurement
    Temperature Measurement Range -4℉ to 302℉, 32℉ to 1022℉ (-20°C to
    150°C, 0 to 550°C)
    Temperature Alert High and low temperature alarm thresholds, reporting coordinates and temperaturevalues

    Laser Range Finder

    Measurement Accuracy ±1m
    Measuring Range 1.2km

    Image Transmission

    Operating Frequency 2.4G/5.2G*/5.8G/900MHz*
    Max Transmission Distance (unobstructed, free of interference) 20km
    Independent Networking 7.9-inch Smart Controller
    Transmitter Power (EIRP) 2.4GHz:<33dBm(FCC), <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: <23dBm(FCC/SRRC/MIC)

    Autonomy

    Non-GPS Hovering and Manual Flight Indoor: Horizontal error ≤3cm (At least have texture at one direction) Outdoor: Daytime: Within 500m flight height, horizontal error < 0.01*height Night: Manual flight is controllable within 100m flight height
    Non-GPS Return-to-Home Within 500m flight height, horizontal error of Return-to-Home point < 30cm
    Automatic Obstacle Rerouting High Speed Obstacle Rerouting: Flight speed up to 20m/s when Min. safety distance to obstacle is 1.5m High Precision Obstacle Rerouting: Flight speed could reach 3m/s when Min. safety distance to obstacle is 0.2m
    Multi-target Recognition and Tracking Target identification types: people, vehicles, boats Number of targets detected: 64 Comprehensive recognition accuracy: > 85%

    Millimeter-wave Radar

    Frequency 60Ghz~64Ghz
    Size 38*14*2mm
    Weight 2g
    EIRP 18dbm
    Distance Detection Range For Obstacle Avoidance:0.2m~100m For Height Measurement:0.05m~200m
    Ranging Accuracy For Obstacle Avoidance:0.1m For Height Measurement:0.02m
    Speed Measurement Range ± 60m/s(4D Mode);±28m/s(3D Mode);
    Speed Measurement Accuracy ≤1%
    Max. Tracking Target Number 32

    Visual Sensing System

    Obstacle Sensing Range Forward/Upward/Downward/Backward/Sideward: 0.2~50m
    FOV Forward/Backward/Sideward: 60°(H),80°(V) Upward/Downward: 360°(H),190°(V)

    7.9-inch smart controller

    Screen 7.9 inch, 2000nits max. brightness, 2048*1536 resolution
    External Battery Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-on Energy: 67Wh Charing time: 120mins Intelligent Lithium Ion Battery
    Operating Time 3 hours (Max. brightness) 4.5 hours (50% brightness)
    Max Transmission Distance (with interference) FCC: 20km CE: 7km
    Storage 128G
    GNSS GPS+GLONASS+Galileo+Beidou
    Operating Temperature -20℃ to 40℃
    Protocol WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi
    Operating Frequency 2.400 - 2.4835 GHz; 5.150 - 5.250GHz; 5.725 ‒ 5.850 GHz
    Transmitter Power (EIRP) 2.400 - 2.4835 GHz FCC/CE:≤20dBm 5.150 - 5.250GHz FCC:≤17dBm 5.725 ‒ 5.850 GHz FCC:≤17dBm CE:≤14dBm

    Aircraft Battery

    Capacity 8070mAh
    Voltage 14.88V
    Battery Type LiPo 4S
    Energy 120wh
    Net Weight 520g
    Charging Temperature 5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
    Hot Swap Support
  • 1 Year Limited
