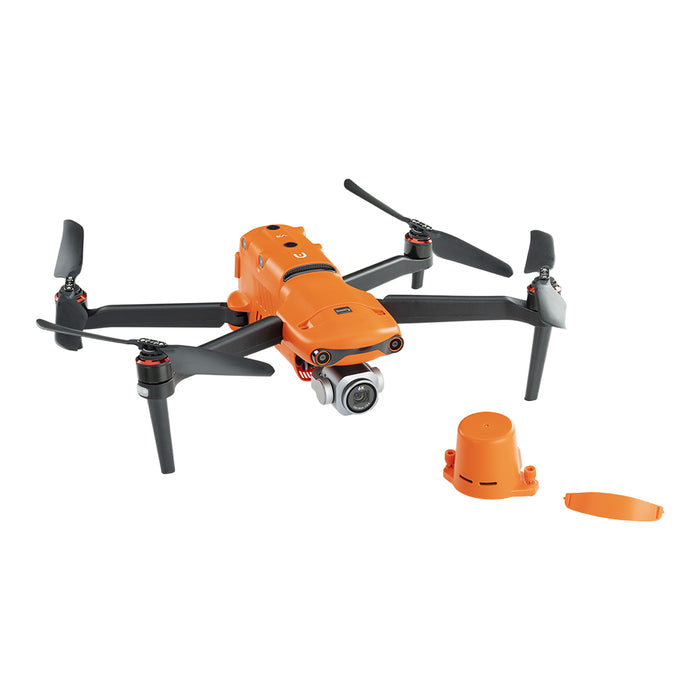

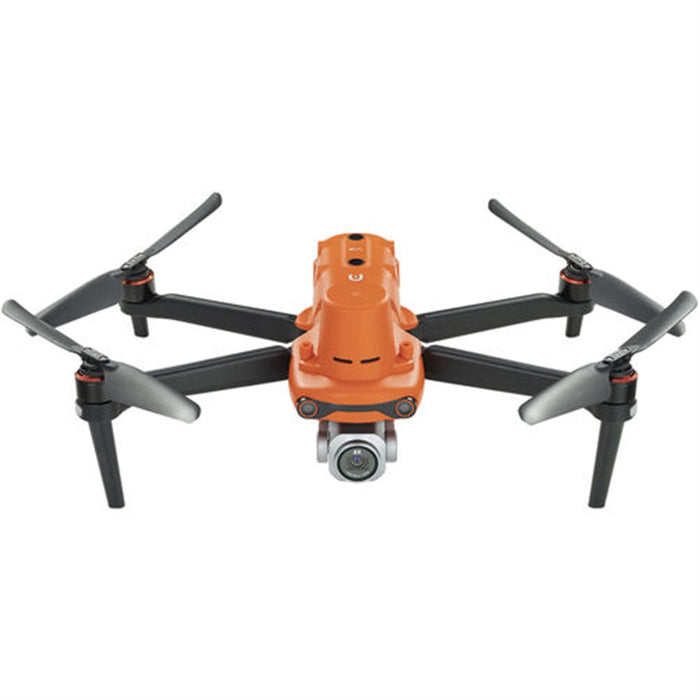

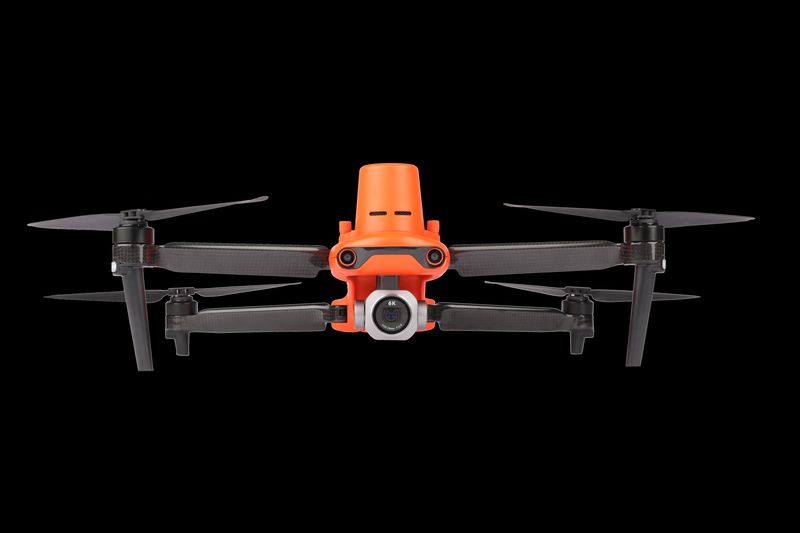

Autel Robotics Evo II Pro 6K V3 RTK Rugged Bundle

by Autel
$2,999.00
  • The EVO II RTK Series V3 integrates an entirely new RTK module for 2022, which provides real-time centimeter-level positioning data in three minutes and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters, and more. The positioning system supports the RTK base station and NTRIP RTK network, which helps to achieve accurate and stable data acquisition in complex operating environments.

    MFG Part Number: EVO2-PRO-RTK-V3-BUN

    Model Number: Evo II Pro 6K RTK Rugged Bundle V3

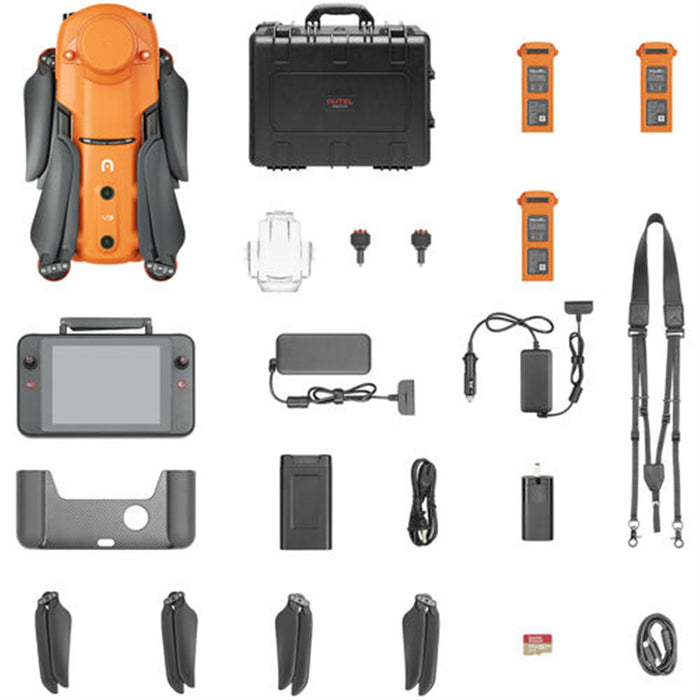

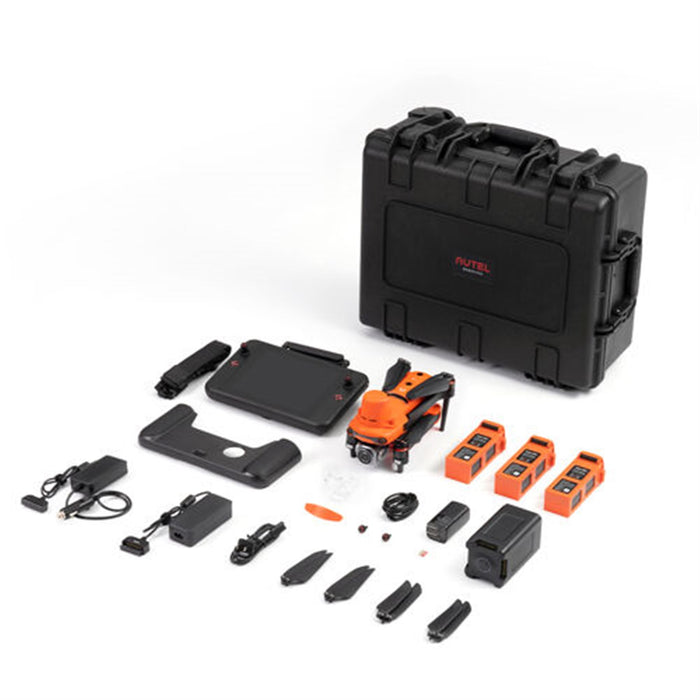

    What's In the Box?

    • 1x Aircraft (including battery, propellers, gimbal cover, and 32G SD Card)
    • 1x Remote Controller (sticks included)
    • 2x Spare batteries
    • 2x Spare propellers (pair)
    • 1x Battery charger + power cable
    • 1X Car charger
    • 1x Multi-charger
    • 1x RC charger
    • 1x RC charging cable
    • 1x RC lanyard
    • 1x RC protective case
    • 1x Spare control stick (pair)
    • 1x Extended port cover
    • 1x Protector case
    • 1x Manual (Packing List, Quick Guide, Disclaimer & Safety Instructions, Battery Safety Instructions, Car Charger Quick Guide, and Multi-Charger Quick Guide)
      • EVO II RTK Series V3 connects to the NTRIP network and does not need GCPs to provide centimeter-grade accuracy.
      • EVO II RTK Series V3 supports all NTRIP-compatible base stations.
      • The Explorer app allows the user to create and save multiple NTRIP profiles for different locations without having to manually input account info for every travel.
      • For repeatable data acquisition missions, you can record the drone’s previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.
      • The EVO II Dual 640T RTK V3 has equipped with a high-resolution thermal imaging camera and an all-new Sony .8" 50-megapixel RYYB sensor.
      • The sensor features an industry-leading 640*512 high-definition thermal imaging resolution of 30hz.
  • EVO II RTK Series V3 Specifications
    Aircraft
    Weight (with propeller and battery) 1250g±0.5g(EVO II Dual 640T RTK V3)
    1237g±0.5g(EVO II Pro RTK V3)
    Size(L*W*H) 230*130*143mm(folded)
    457*558*143mm(unfolded)
    Wheelbase 397 mm
    Maximum Service Ceiling Altitude 7000 m
    Max ascent speed 8 m/s (Ludicrous)
    Max descent speed 4 m/s (Ludicrous)
    Max horizontal flight speed 20m/s (Ludicrous)
    Max flight distance (no wind) 21 km
    Max angular velocity 120°/s
    Max tilt angle 33° (Ludicrous)
    Max flight time 36 min
    Max hovering time (no wind) 32 min
    Operating temperature range -10℃ ~ 40℃
    Maximum resistance to wind Level 8
    Operating frequency 902-928MHz (FCC Only)
    2.400-2.4835GHz
    5.725-5.850GHz (non-Japan)
    5.650-5.755GHz (Japan Only)
    Transmission power 900M
    FCC/ ISED:≤31dBm
    2.4G
    FCC/ ISED:≤32dBm
    SRRC/CE/MIC/RCM:≤20dBm
    5.8G (non-Japan) ; 5.7G (Japan)
    FCC/ISED/SRRC/MIC:≤33dBm
    CE/ RCM:≤14dBm
    Hovering accuracy
    When RTK is enabled and working normally:
    Vertical: ±0.1 m; Horizontal: ±0.1 m
    Vertical: ±0.1 m (when the visual positioning is working normally);
    ±0.5 m (when GPS works normally)
    Horizontal: ±0.3 m (when the visual positioning is working normally);
    ±1.5 m (when GPS works normally)
    Image position compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.
    Internal storage 8GB
    SD storage max. support 256GB (UHS-3 or Class 10)
    GNSS
    Single frequency high sensitivity GNSS GPS+BeiDou+Galileo(Asia)
    GPS+GLONASS+Galileo(Other areas)
    Multi-frequency multi-system high-precision RTK GNSS
    Frequency points used:
    GPS:L1/L2;
    GLONASS:L1/L2;
    BeiDou:B1/B2;
    Galileo:E1/E5
    First positioning time: <50 s
    Positioning accuracy:
    vertical 1.5 cm + 1 ppm (RMS);
    Horizontal 1 cm + 1 ppm (RMS)
    1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves
    Gimbal
    Gimbal 3-axis stabilization
    Mechanical range Tilt: -135° to +45°;
    Pan: -100° to +100°
    Controllable rotation range Tilt: -90° to +30°;
    Pan: -90° to +90°
    Max control speed (Tilt) 300°/s
    Angular Vibration Range ±0.005°
    Remote controller and image transmission
    Operating frequency 902-928MHz (FCC Only)
    2.400-2.4835GHz
    5.725-5.850GHz (non-Japan)
    5.650-5.755GHz (Japan Only)
    Transmission power FCC:≤33dBm
    CE:≤20dBm@2.4G,≤14dBm@5.8G
    SRRC:≤20dBm@2.4G,≤33dBm@5.8G/5.7G
    Max Transmission Distance (unobstructed, free of interference) FCC:15km
    CE:8km
    Display screen 2048x1536 60fps
    Battery 5800mAh
    Operating time ~3 hours (Max. Brightness)
    ~4.5 hours (50% Brightness)
    Charging time 120 minutes
    Internal Storage ROM 128GB
    Sensing system
    Sensing system type Omnidirectional sensing system
    Forward Accurate measurement range: 0.5-18 m
    Effective sensing speed: <12m/s
    Viewing angle: Horizontal: 60°, Vertical: 80°
    Backward Accurate measurement range: 0.5-16 m
    Effective sensing speed: <12m/s
    Viewing angle: Horizontal: 60°, Vertical: 80°
    Upward Accurate measurement range: 0.5-10 m
    Effective sensing speed: <5m/s
    Viewing angle: Horizontal: 65°, Vertical: 50°
    Downward Accurate measurement range: 0.5-10 m
    Effective sensing speed: <5m/s
    Viewing angle: horizontal: 100°, vertical: 80°
    Left and right Accurate measurement range: 0.5-10 m
    Effective sensing speed: <5m/s
    Viewing angle: horizontal: 65°, vertical: 50°
    Operating Environment Forward, Backward and Sides:
    Surface with clear pattern and adequate lighting (lux > 15)
    Upward:
    Detects diffuse reflective surfaces (>20%)
    (walls, trees, people, etc.)
    Downward:
    Surface with clear pattern and adequate lighting (lux > 15)
    Detects diffuse reflective surfaces (>20%)
    (walls, trees, people, etc.)
    EVO II Pro RTK V3 visual camera
    Sensor 1 inch CMOS; 20M pixels
    Lens FOV: 82°
    35 mm format equivalent focal length: 29 mm
    Aperture: f/2.8 - f/11
    Focus range: 0.5 m to infinity
    ISO range Video: 100-44000
    Photos: 100-6400
    Shutter speed Photo mode: 1/8000 ~ 8s
    Other: 1/8000 ~ 1/frame rates
    Zoom 1-16x (up to 3x lossless zoom)
    Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR
    Maximum photo size 5472*3648 (3:2)
    5472*3076 (16:9)
    3840*2160 (16:9)
    Image Format JPG (default) / DNG / JPG+DNG
    Photo mode 5472x3076P30/P25/P24
    3840x2160P60/P50/P48/P30/P25/P24
    2720x1528P60/P50/P48/P30/P25/P24
    1920x1080P60/P50/P48/P30/P25/P24
    Video format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
    Max bitrate 120Mbps
    Supported file system FAT32/exFAT
    EVO II Dual 640T RTK thermal camera
    Sensor Uncooled VOx Microbolometer
    Lens
    FOV H33°V26°
    Focal length 13mm
    Zoom 1-16x
    Sensor resolution 640*512
    Pixel size 12μm
    Wavelength range 8 - 14μm
    Temperature range High gain mode: -20° to +150°
    Low gain mode: 0° to +550°
    Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
    @Environmental temperature-20℃~60℃
    Accurate temperature
    measurement distance
    2-20 meters
    Video resolution 640x512@30fps
    Video format MOV / MP4 (Support H.264/H.265)
    Camera resolution Infrared mode: 640*512
    Picture-in-picture mode: 1920*1080, 1280*720
    Photo mode Single shot
    Burst shooting: 3/5 frames, 3 is the default
    Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
    Photo format JPG (with irg file)
    EVO II Dual 640T RTK V3 visual camera
    Sensor 1/2 inch CMOS; 48M effective pixels
    Lens FOV: 79°
    35 mm format equivalent focal length: 25.6 mm
    Aperture: f/1.8
    Focus range: 0.5 m to infinity (with auto focus)
    ISO range Video: 100-64000
    Photos: 100-6400
    Shutter speed Photo mode: 1/8000 ~ 8s
    Other: 1/8000 ~ 1/frame rates
    Zoom 1-16x (up to 4x lossless zoom)
    Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR imaging
    Maximum photo size 8192*6144(4:3)
    4096*3072(4:3)
    3840x2160(16:9)
    Image Format JPG (default) / DNG / JPG+DNG
    Video format MOV / MP4
    Video resolution 3840x2160P60/P50/P48/P30/P25/P24
    2720x1528P60/P50/P48/P30/P25/P24
    1920x1080P60/P50/P48/P30/P25/P24
    Max bitrate 120Mbps
    Supported file system FAT32/exFAT
    Battery
    Capacity 7100 mAh
    Voltage 11.55 V
    Battery type LiPo 3S
    Energy 82 Wh
    Weight 365 g
    Charging temperature range 5℃ to 45℃
    Storage temperature and humidity -10~30℃,65±20%RH
    Recommended storage temperature 22-28℃
    Max charging power 93W
    Charging time 90 minutes
    Charger
    Input 100-240 V, 50/60 Hz, 1.5A
    Output 13.2 V ⎓ 5 A
    5V⎓3A 9V⎓2A 12V⎓1.5A
    Voltage 13.2±0.1V
    Rated power 66W
    Multi-Charger
    Voltage 13.2 V
    Charging temperature range 5℃ to 45℃
  • 12 Month Limited Autel Warranty
